Full-Auto Filling And Sealing Machine For Stand-Up Pouch(Bag)

Characters
The machine is applied to fill and seal the packaging of the jelly juice,Soya milk product,pure water,juice milk product,cooking lil,laundry product etc.
Automatic Process:
Bag-sending→Quantificational of filling-Cleaning→Cap Feeding and Covering→Cap Screwing→Finished Prooduct Discharging→Liquid of Level Controlling→CIP(Cleaning In Place)

Main Function:
1)Touchscreen Operation
2)Automatic Pouch-loading
3)Photoelectric Measuring tracking
4)Automatic Fixed-quantity Filling
5)Sweeping Pockets
6)Automatic Capping
7)Automatic Cap Screwing
8)Automatically Pick Up Bags Itself
9)Water Level Control (of Delivering Material)
10)Quick - Stop Control Protective Function

Technical
1.Capacity: 1200-1500 Bags/H
2.Packing Volume:: <300ml
3.Accuracy: ±1%
4.Voltage: 220V/50Hz
5.Power: 3.5KW
6.Air Consumption: 0.8Mpa
7.Weight: 650KG
8.Size: 1150*1350*1650(mm)

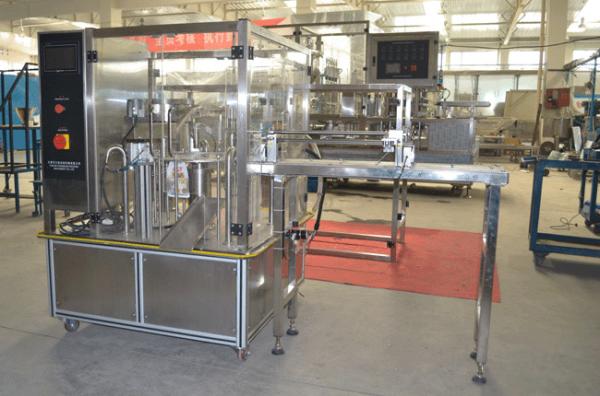

Full-Auto Filling And Sealing Machine For Stand-Up Pouch(Bag) Images
